Semiconductor and electronics manufacturing facilities are dense electrical environments. A single plant may include production tools, clean utility areas, process support equipment, HVAC and exhaust systems, water treatment, chemical supply, fire safety systems, automation networks, quality labs, and warehouse or packaging areas. Cable tray routes must serve these systems without creating maintenance obstacles or unnecessary contamination risks.

For cable tray buyers, the main mistake is treating the project like a standard commercial building. Semiconductor and electronics facilities often require tighter coordination between electrical, mechanical, process, cleanroom, safety, and operations teams. Tray selection must consider route cleanliness, cable segregation, corrosion exposure, vibration, expansion planning, and access for future tool moves.

Why Cable Tray Planning Matters in Clean Manufacturing

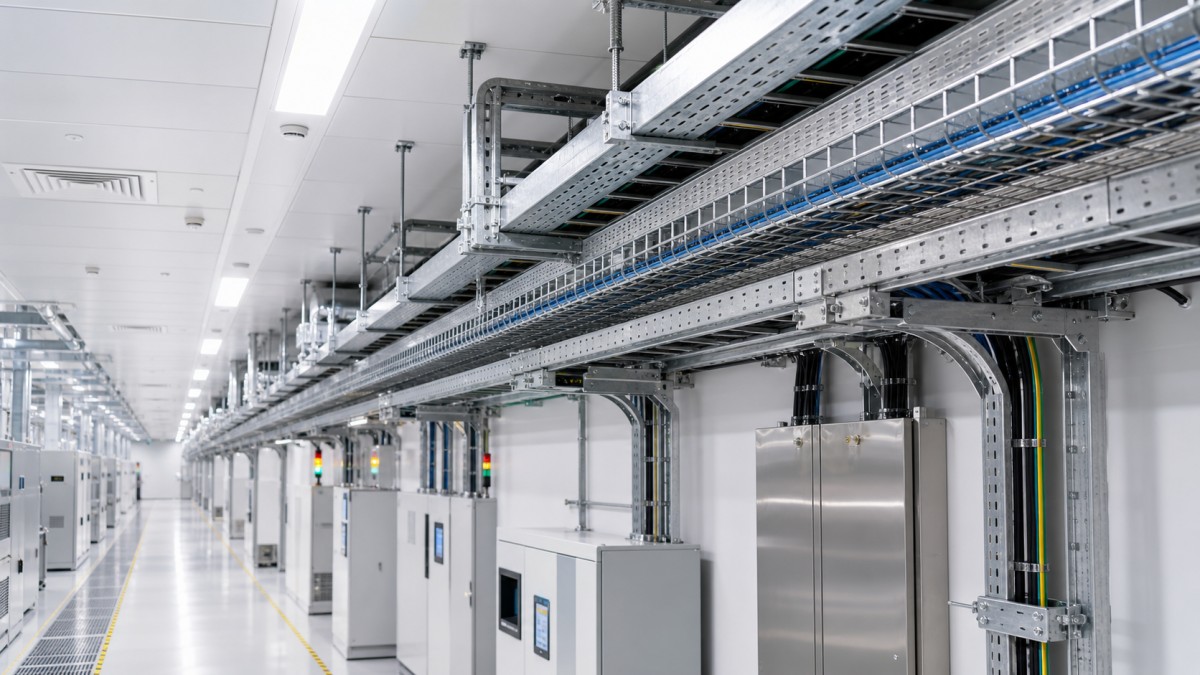

Manufacturing uptime is the core concern. Cable routes should allow inspection, cable replacement, and controlled expansion without disturbing adjacent utilities. In many facilities, cable tray is installed in service corridors, sub-fab areas, utility chases, ceiling spaces, electrical rooms, and equipment support zones. Each area may have a different requirement for finish, cover, support, and cable separation.

Clean manufacturing does not mean every tray must be stainless steel or enclosed. It means each route should be reviewed according to the local environment. Dry electrical rooms may use galvanized or powder-coated trays. Wet process support areas may need stainless steel or a stronger corrosion protection strategy. Tool connection areas may require compact perforated tray or cable trunking to keep routes organized and protected.

Early planning also reduces site changes. If cable tray width is underestimated, installers may overload routes or add parallel trays late in the project. If fittings and supports are not included in procurement, the contractor may need emergency purchases that do not match the original finish.

Choosing Tray Types by Facility Area

A semiconductor or electronics project normally uses several cable tray types. The right choice depends on cable size, route density, protection needs, and maintenance access.

Perforated Cable Tray

Perforated cable tray is widely used for control, auxiliary power, lighting, and smaller distribution routes. The bottom support helps organize smaller cables while the openings allow drainage and reduce weight. In areas where tools or dust may fall from above, covers can be added after reviewing heat dissipation and access needs.

Ladder Cable Tray

Ladder cable tray is suitable for heavier power routes, longer spans, and larger cable bundles. It provides ventilation and easier cable entry or exit along the route. It is often used in electrical rooms, utility corridors, plant distribution routes, and larger feeder runs.

Cable Trunking

Cable trunking is useful for protected smaller cable groups, building-side routes, control panels, and areas where a cleaner appearance is needed. Buyers should confirm cover type, cable exit method, bend radius, and condensation risk before using trunking in humid or washdown areas.

Stainless Steel Cable Tray

Stainless steel cable tray may be selected for chemical exposure, humid process support areas, washdown zones, or owner specifications requiring stronger corrosion resistance. The tray body, fasteners, splice plates, brackets, and supports should use compatible materials.

Key Specification Points for Buyers

Common Procurement Mistakes

One common mistake is ordering only straight tray lengths. Semiconductor and electronics plants usually require many route changes around ducts, pipes, process tools, and steel supports. A quotation without fittings, brackets, and covers can look competitive but create shortages during installation.

Another mistake is mixing finishes without engineering review. A stainless tray with ordinary fasteners, or galvanized tray with mismatched brackets in a humid area, can reduce the value of the selected material. Buyers should ask suppliers to quote the tray and accessories as a complete system.

A third issue is failing to plan spare capacity. Electronics manufacturing layouts change over time. Future tools, automation upgrades, and additional monitoring systems may require extra cables. Oversizing every route is not economical, but critical corridors should be reviewed for future cable space before procurement.

Practical RFQ Checklist

• Facility area: clean utility, electrical room, process support, warehouse, outdoor plant, or wet area.
• Tray type: perforated, ladder, trunking, wire mesh, or stainless steel.
• Material and finish: pre-galvanized, hot-dip galvanized, stainless steel, or powder-coated.
• Dimensions: width, side height, thickness, standard length, and load expectation.
• Fittings: bends, tees, crosses, reducers, covers, drop-outs, and end plates.
• Support package: strut channels, brackets, threaded rods, clamps, anchors, and fasteners.
• Packing: export bundles, labeling by route, protection for finished surfaces, and spare accessories.

Quality Checks Before Shipment

For electronics manufacturing projects, a small dimensional error can create a large site problem because trays often pass through congested service zones. Buyers should request basic inspection records or photos before shipment, especially for custom widths, stainless steel orders, or large accessory packages. The goal is not to add paperwork for its own sake; it is to confirm that the delivered goods match the route schedule.

Useful checks include tray width and side height, straightness of long sections, hole pattern consistency, cover fit, bend angle, splice plate alignment, and the finish of cut or welded areas. For stainless steel tray, the buyer should also confirm the stated material grade and whether fasteners and brackets follow the same corrosion strategy. For galvanized tray, confirm whether the tray is pre-galvanized or hot-dip galvanized after fabrication, because these are different purchasing choices.

Packing also matters. Cable tray is bulky, and thin edges can be damaged if bundles are not protected. Export buyers should ask for route labels, accessory lists, and separated hardware packages. When the site team can identify each bundle quickly, the installation sequence is easier to control.

For phased factory fit-outs, buyers may also request a small spare allowance for splice plates, covers, fasteners, and brackets. These items are inexpensive compared with the cost of stopping tool hook-up work while waiting for missing hardware.

Final Buying Advice

For semiconductor and electronics facilities, cable tray should be specified as part of a coordinated utility system. The lowest unit price for tray lengths is rarely the lowest installed cost if accessories, supports, and finish compatibility are missing.

HONGFENG / Cable Tray Pro can support buyers with ladder cable tray, perforated cable tray, cable trunking, stainless steel tray, galvanized tray, and matched accessories for clean manufacturing and electronics plant projects. Share your route schedule, finish requirement, and installation environment to prepare a more reliable quotation.
