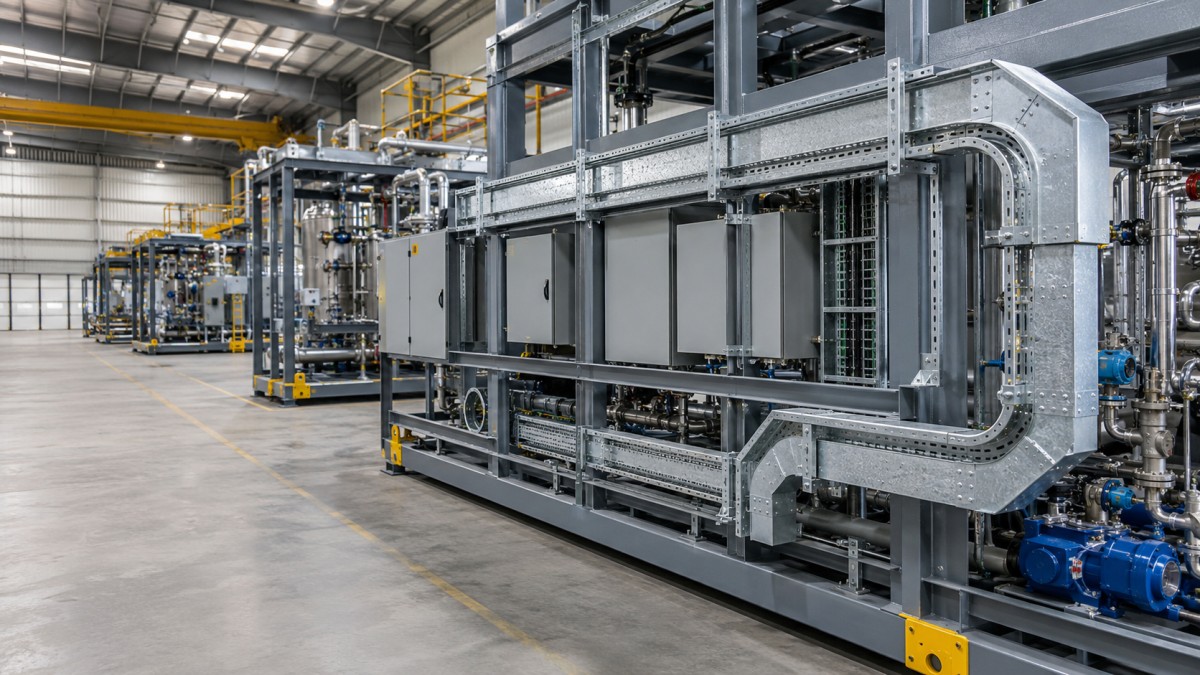

Modular skid-mounted industrial plants are designed to reduce site work by moving more fabrication, assembly, and testing into a controlled workshop. They are used in chemical processing, water treatment, hydrogen systems, oil and gas packages, power equipment, dosing systems, filtration units, utilities, and many other industrial applications. Cable tray systems are often small compared with the process equipment, but they are critical to making the module easy to wire, ship, install, and commission.

For procurement teams, the challenge is that a skid-mounted project has two cable tray worlds. One part is installed on the skid frame during fabrication. The other part connects the skid to the site cable routes, control rooms, power distribution equipment, and neighboring modules. If those interfaces are not planned early, the contractor may need field cutting, temporary brackets, missing reducers, or urgent accessory orders during commissioning.

Why Skid-Mounted Projects Need a Different Cable Tray Mindset

A traditional plant route may run continuously across a building or pipe rack. A modular skid route must fit inside a transportable frame, survive lifting and shipping, and then connect cleanly after the module is placed on site. Tray sections may need to stop at module boundaries, align with cable glands or junction boxes, and leave clearance for valves, instruments, lifting points, and removable panels.

The cable tray package should therefore be designed together with the skid frame, equipment layout, cable list, and site interface drawing. A supplier quoting only straight lengths may miss the important details: short custom sections, transition fittings, covers, supports, field joint hardware, bonding provisions required by the project, and labeled packing for installation.

Early planning also helps avoid damage during transport. Tray ends, covers, and exposed brackets should be protected so that the system arrives ready for connection rather than repair.

Tray Types Used on Modular Skids

Perforated Cable Tray

Perforated cable tray is common on skid-mounted equipment because it gives continuous support for control cables, instrumentation cables, smaller power cables, and machine wiring. It can be mounted to skid frames, equipment supports, or dedicated brackets. Covers may be used where cables need protection during transport or where the installation environment requires more shielding.

Ladder Cable Tray

Ladder cable tray is suitable for larger power routes, main skid-to-site connections, or longer module corridors where ventilation and load capacity are important. The support span, cable load, and transport bracing should be reviewed carefully because a skid can experience handling loads before it reaches the final plant location.

Cable Trunking

Cable trunking can be useful for control panels, local junction boxes, and equipment-side wiring where a cleaner enclosed route is needed. Buyers should confirm cover access, cable exit points, bend radius, and whether the trunking can be opened after the skid is installed.

Wire Mesh Cable Tray

Wire mesh cable tray can be used for low-voltage, data, or instrument routes in less demanding areas. It is easy to modify, but the project should confirm whether it is acceptable for transport, cable protection, and the expected site environment.

Key Interface Points to Define Before Procurement

The most expensive cable tray problems in modular projects often appear at the interface between factory work and site work. Buyers should define these areas before issuing the purchase order.

These details are not decorative. They determine whether the site team can connect cables quickly or must spend time adapting the tray system after the module arrives.

Material, Finish, and Fastener Selection

Modular skid projects may be installed indoors, outdoors, offshore-adjacent, in chemical plants, in water treatment facilities, or in high-humidity utility areas. The tray finish should match the final service environment as well as the transport route. A skid fabricated in a dry workshop may later operate in a coastal or corrosive location.

Hot-dip galvanized cable tray is often selected for outdoor industrial skids because it provides practical corrosion protection and mechanical strength. Stainless steel cable tray may be preferred in chemical, coastal, washdown, or highly humid environments where the specification requires stronger corrosion resistance. Powder-coated tray can be used where color identification or additional controlled-environment protection is needed.

Fasteners and supports matter as much as the tray body. If stainless tray is installed with incompatible carbon steel brackets or fasteners, corrosion performance may be compromised. Buyers should confirm whether the brackets, splice plates, bolts, nuts, washers, clamps, and anchors follow the same material strategy as the tray.

Procurement Checklist for Modular Skid Cable Tray

A modular skid RFQ should include both normal cable tray requirements and module-specific packaging details. This helps the supplier prepare goods that support fabrication and site installation.

• Skid layout drawings showing equipment, frames, panels, junction boxes, and cable route elevations.
• Tray type and size by route, including width, side height, thickness, and standard or custom length.
• Material and surface finish based on the final service environment.
• Fittings: bends, tees, reducers, crosses, drop-outs, covers, end caps, splice plates, and dividers.
• Support package: brackets, strut channel, clamps, welded or bolted interfaces, and fasteners.
• Module boundary details: removable sections, transition pieces, field joint hardware, and spare bolts.
• Transport protection: cover protection, end protection, wrapping method, and anti-rub packing.
• Labeling: skid number, route number, accessory bundle, and installation phase.

Common Mistakes to Avoid

The first mistake is buying tray after the skid design is already frozen. When tray routes are added late, they may interfere with valves, instrument access, lifting points, or shipping frames. The second mistake is omitting transition fittings and assuming the site contractor can solve every connection. Field adaptation is sometimes necessary, but it should not become the main installation strategy.

The third mistake is underestimating packing. Small hardware can stop a large module from being wired. Bolts, nuts, washers, splice plates, end caps, and covers should be counted, packed, and labeled by skid or route. A modest spare allowance is often more economical than urgent international freight for missing accessories.

Final Buying Advice

Cable tray for modular skid-mounted plants should be specified as a route-based, interface-aware package. Buyers should confirm tray type, finish, supports, transport protection, module boundary fittings, and site connection hardware before production begins. This approach reduces rework and helps the contractor move from module placement to cable pulling faster.
