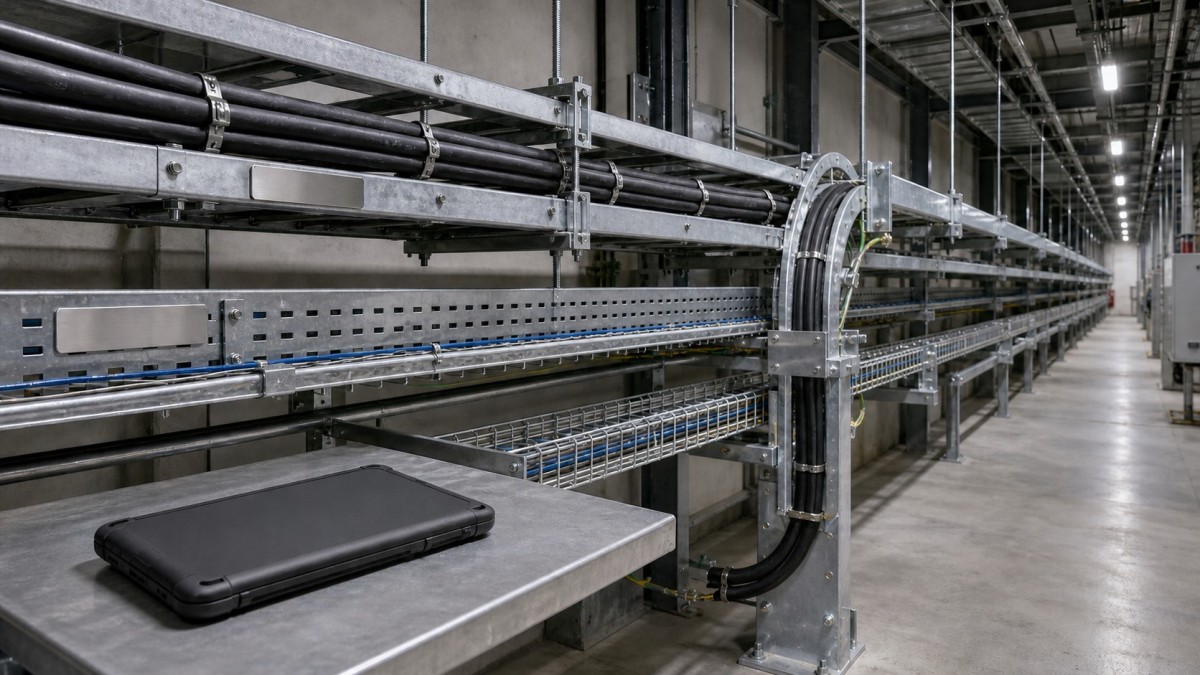

A cable tray package is not fully handed over when the last straight length is installed. Owners and operators also need reliable information showing where each route runs, what it carries, which material and fittings were installed, and how approved site changes were recorded. Without that structure, the model, drawings, bill of quantities, labels, inspection records, and physical installation can describe different versions of the same system.

Route tagging and digital handover give EPC teams a practical way to connect procurement, installation, commissioning, and future maintenance. The goal is not to add technology for its own sake. It is to create a stable identification system and a proportionate set of records that the project can maintain.

Define the Information Requirement Before the RFQ

Digital deliverables should be specified before suppliers prepare their quotations. A late request for model objects, route tags, asset attributes, or linked inspection files can require extensive rework because the fabrication and packing data were created under a different naming system.

The appointing party or main contractor should define what information is required, when it must be delivered, who reviews it, and which format will be accepted. The requirement may include a route register, component schedule, approved drawings, model data, material records, inspection reports, photographs, packing lists, and as-built revisions. Not every project needs every field at individual component level.

A sensible information strategy starts with operational use. If the owner maintains tray routes by area and route number, that should drive the supplier's tag structure. If only critical fire-rated, outdoor, or process routes need detailed records, the project should state that boundary rather than demanding identical data for every short indoor section.

Create a Stable Cable Tray Tag Structure

A route tag should remain unique and understandable from design through handover. It may combine project, area, system, service, route sequence, elevation, or segment identifiers, but it should not become so long that installers cannot use it. The project information standard should define separators, permitted characters, leading zeros, revision rules, and ownership of new numbers.

Tags can be assigned at route, segment, support, or component level. Route-level tagging is usually easier to maintain and may be sufficient for general cable management. Segment or component-level identification can be useful at expansion joints, fire barriers, special supports, removable sections, or interfaces where inspection and replacement history matter.

The same identifier should appear consistently in the tray schedule, drawings, model properties, packing list, site label, inspection record, and as-built register. Renaming a route in one system without a controlled cross-reference creates duplicate identities and weakens future retrieval.

Connect the BOQ, Drawings, and Model

The supplier's bill of materials should map to approved route and fitting schedules. Straight lengths, bends, tees, reducers, risers, covers, barriers, splice plates, supports, fasteners, and bonding accessories need consistent descriptions and units. Model object names alone are rarely enough for purchasing because one object may represent several supplied components.

The data exchange should distinguish design intent from fabrication detail. A model may show a generic bend, while the supplier drawing defines angle, radius, side-rail profile, splice location, and support requirement. The handover package should preserve the approved relationship between these records rather than forcing all information into one file.

Revision status is essential. Issued-for-construction drawings, approved supplier drawings, site redlines, and final as-built records should not be mixed in an uncontrolled folder. File names, status codes, revision numbers, and approval dates should follow the project's common data environment or document-control procedure.

Decide Which Product Data to Capture

Useful cable tray attributes may include tray type, width, side-rail height, material, finish, thickness, load class or approved load reference, support span, cover requirement, segregation, area, service, and drawing reference. Special conditions such as stainless steel fasteners, dissimilar-metal isolation, expansion joints, bonding jumpers, or fire-barrier interfaces can be recorded where they affect maintenance.

Supplier and batch information may be required for selected products, but a tray system can contain thousands of ordinary components. The project should avoid collecting serial-number-style data that has no operational purpose. A controlled product family, delivery batch, or route-level record is often more workable.

Fields should use agreed values rather than free-text variations. For example, HDG, hot dip galvanized, and galvanized after fabrication can accidentally become three different categories in an asset database. A data dictionary or approved pick list reduces that problem.

Use Physical Labels That Survive the Site

Site labels should remain legible under the expected temperature, moisture, ultraviolet exposure, chemicals, and cleaning regime. Their material and fixing method must suit the tray finish and should not create sharp edges, corrosion traps, or galvanic problems. Labels also need a location rule so inspectors and operators know where to look.

A human-readable route number should remain visible even when a QR code or other machine-readable mark is used. Digital links can provide convenient access to controlled records, but they depend on permissions, network availability, database maintenance, and URL governance. The code should point to a managed record, not an uncontrolled personal folder or temporary link.

Labels fitted before shipment can support route-based packing, while final site labels may need installation confirmation because route names and segment boundaries can change. The project should decide whether factory labels are temporary logistics identifiers, permanent asset labels, or both.

Capture Installation and As-Built Changes

Field changes are common around equipment nozzles, access platforms, ducts, pipe supports, and vendor packages. The change process should capture the affected route, reason, approved sketch or instruction, revised material, support impact, cable bend and pulling implications, and final inspection status.

Photographs are useful when they are indexed by route and location. A folder of unnamed images does not provide a dependable as-built record. Photo requirements should define viewpoint, required detail, file naming, date, location, and whether measurements or labels must be visible.

As-built verification should confirm more than geometry. Material and finish substitutions, added covers, changed support spacing, new bonding jumpers, relocated expansion sections, and non-standard fittings may also need to be recorded. The final route register should reconcile installed quantities and approved deviations without pretending that every procurement quantity equals the installed quantity.

Build a Practical Digital Handover Package

• Approved route-tag convention, area codes, data dictionary, and responsibility matrix
• Final route register with service, location, tray type, dimensions, material, finish, and drawing reference
• Approved supplier drawings, fitting schedules, support details, and interface drawings
• As-built model or drawings in the required native and exchange formats
• Material certificates, coating records, inspection reports, and approved deviations where required
• Indexed site photographs and installation inspection records linked to route identifiers
• Bonding, expansion, fire-barrier, and special support records for designated critical locations
• Final BOQ reconciliation, spare-parts register, packing references, and document index

RFQ Inputs for Suppliers

The RFQ should include the project naming convention, sample route tags, required data fields, file templates, model or drawing formats, label specification, document milestones, review workflow, and final handover index. It should also state whether the supplier must populate data, provide source records for the contractor to populate, or support both activities.

Commercial scope should cover document revisions and approved field changes. A fixed allowance or clear rate for revised schedules, labels, and drawings is more transparent than assuming unlimited updates. Suppliers also need the cable tray specification, route drawings, BOQ, materials, loads, support criteria, fittings, covers, and bonding requirements so digital records remain tied to the physical supply.
